Equipment for wet production of antimony trioxide
Crusher: Select [model] jaw crusher, with a processing capacity of 5-10 tons/hour, which can crush the raw materials to a suitable particle size.
Ball mill: [model] ball mill, the grinding fineness can reach 200 mesh, which meets the requirements of leaching for raw material particle size. Output 5-10/small.

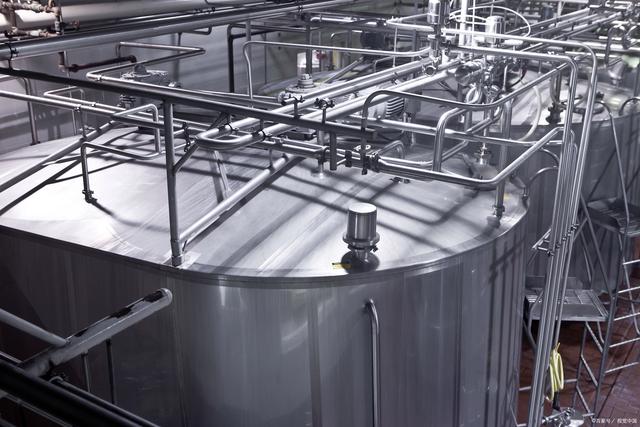

Leaching tank: Because the leaching is heated to 80 degrees and leaching is performed with chlorine, the structure of the leaching tank needs to be strengthened. Therefore, the carbon steel lining 4f or PP method is adopted, which is heat-resistant, chlorine-resistant and mechanically vibrating-resistant. The equipment volume is calculated based on 18.4T of mineral powder per day. If the liquid-solid ratio is 3, 84 cubic meters need to be processed. Considering the reaction time, temperature step, heat transfer rate, ion collision probability, agitator end speed, input power, transportation conditions, equipment construction cost and other factors, a volume of 6 cubic meters is taken. Six equipments are operated in parallel, equipped with agitators and heating devices to ensure sufficient reaction.
Filtering equipment: Plate and frame filter press, two units with a filtration area of 100 square meters and one unit with a filtration area of 20 square meters, used for separation of leachate and residue, purification of reduced mother liquor, hydrolysis precipitation and mother liquor, and filtration of dechlorinated products.
Drying equipment uses airflow dryer Q1000, which is automatically operated without crushing and screening, and directly outputs powdered products into the packaging machine for automatic packaging. Due to negative pressure operation, dust overflow and pollution of the environment are avoided.
The packaging adopts automatic packaging machine, which is mature and can be purchased on the market, so it will not be described.
